Cable Socks

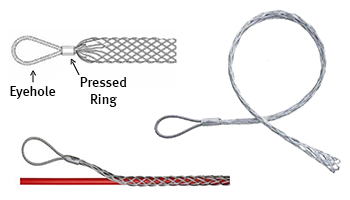

RANEL CABLE PULLING SOCKS
| Order Code | Selection of Socks According to Cable Diameter | Safe Operating Weight(Kg.) | Breaking Weight(Kg.) | |
|---|---|---|---|---|
| RKC-15 | It is used on all cables with a diameter of 12-15mm. | 950 kg. | 3,800 Kg. | |
| RKC-25 | It is used on all cables with a diameter of 16-25mm. | 1,140 kg. | 4,560 Kg. | |
| RKC-36 | It is used on all cables with a diameter of 19-36mm. | 2,556 kg. | 10,2224 Kg. | |
| RKC-45 | It is used on all cables with a diameter of 36-45mm. | 2,982 kg. | 11,928 Kg. | |
| RKC-50 | It is used on all cables with a diameter of 45-50mm. | 4,536 kg. | 18,144 Kg. | |
| RKC-61 | It is used on all cables with a diameter of 50-61mm. | 5,292 kg. | 21,168 Kg. | |
| RKC-75 | It is used on all cables with a diameter of 61-75mm. | 6,048 kg. | 24,192 Kg. | |
| RKC-95 | It is used on all cables with a diameter of 75-95mm. | 7,560 kg. | 30,240 Kg. | |
| RKC-120 | It is used on all cables with a diameter of 90-120mm. | 22,680 kg. | 90,720 Kg. | |
| RKC-150 | It is used on all cables with a diameter of 120-150mm. | 27,216 kg. | 108,864 Kg. | |
| RKC-200 | It is used on all cables with a diameter of 150-200mm. | 31,752 kg. | 127,008 Kg. | |
| Single eyehole socks. | ||||
